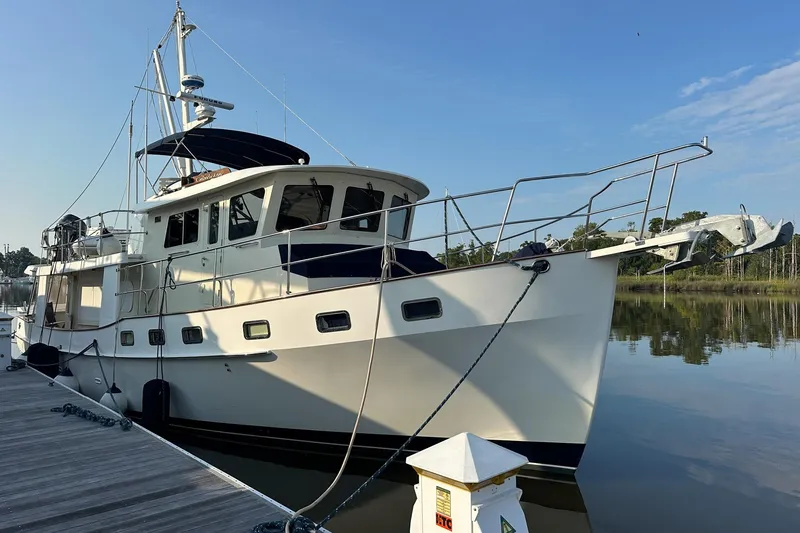

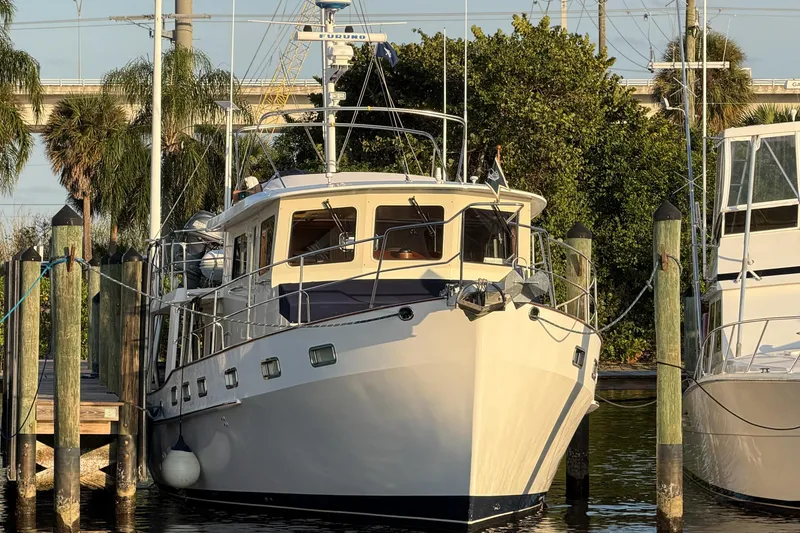

2008 Krogen 48 North Sea

Hull and superstructure molds from high-grade female tooling.

Hull construction includes use of USA-made, Cook® gel coat. Hand-Laid Knytex® fiberglass construction with closed-cell PVC sandwich core used in topsides. Solid fiberglass below waterline with blister-resistant vinylester resin utilized on first two laminates below the waterline, with Kevlar® reinforcements.

Superstructure includes end-grain balsa core and surface mats for print-through reduction.

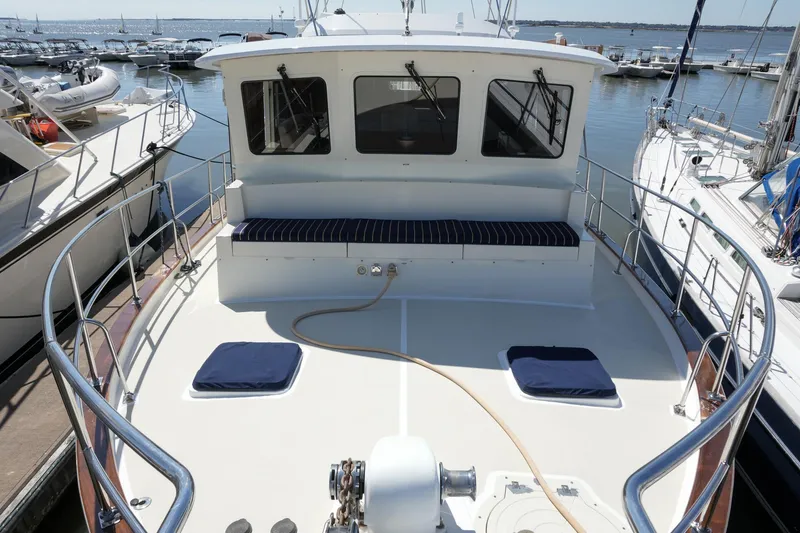

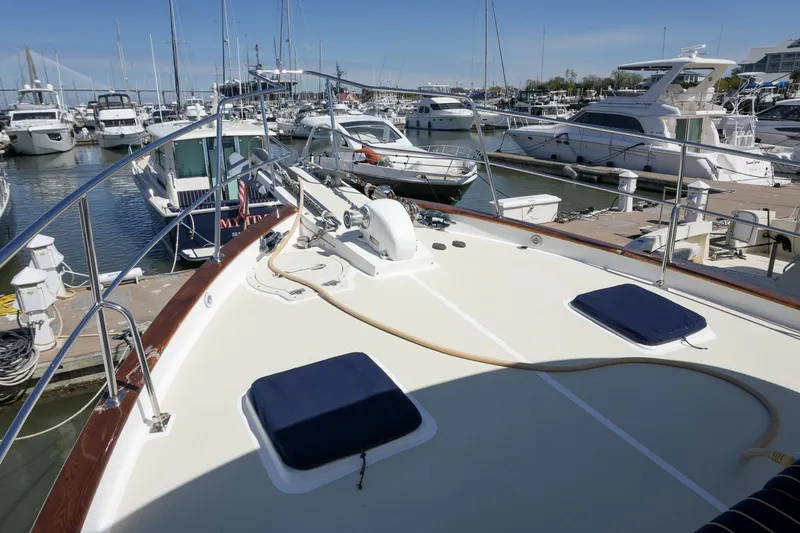

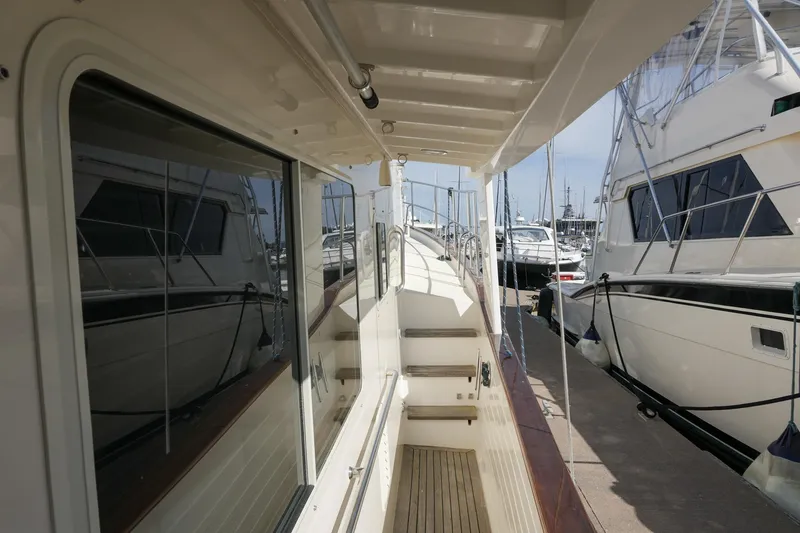

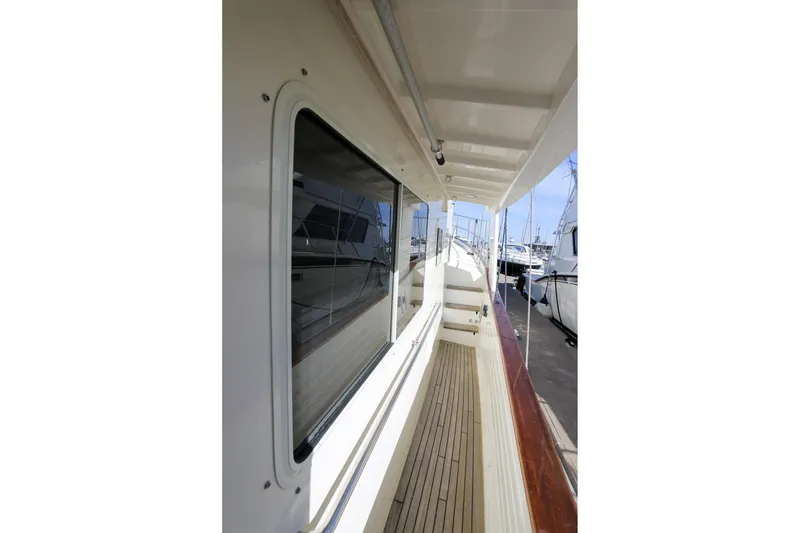

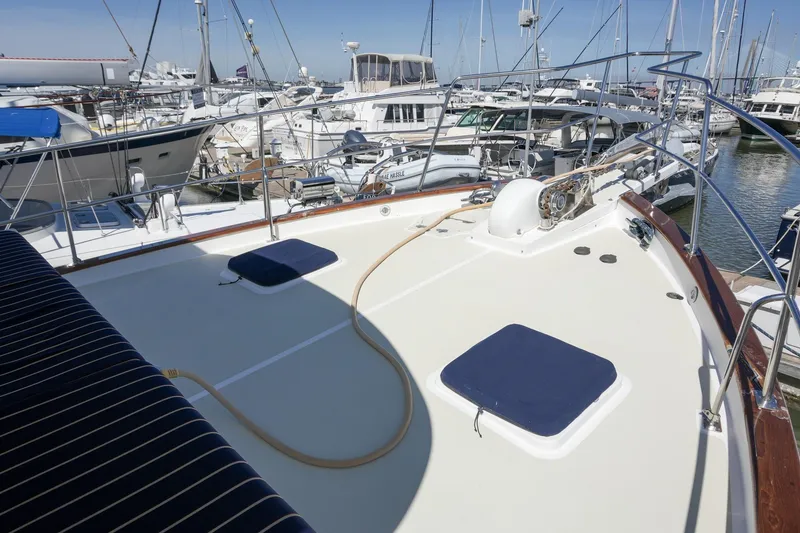

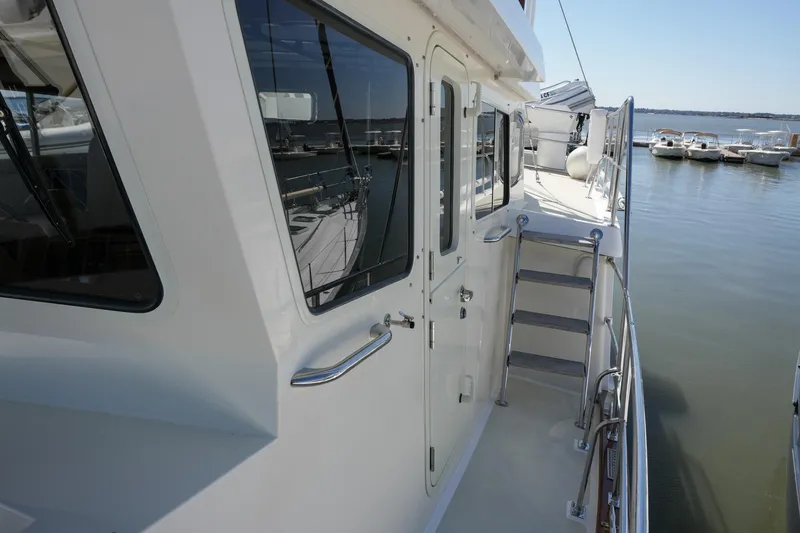

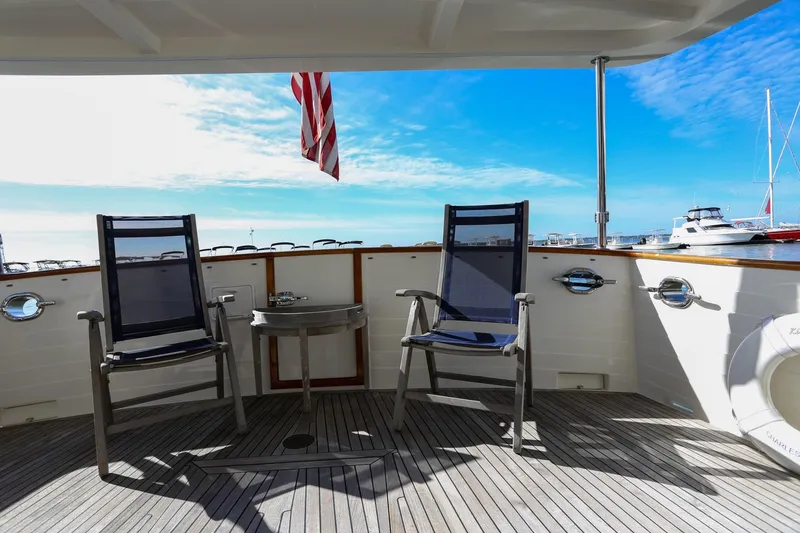

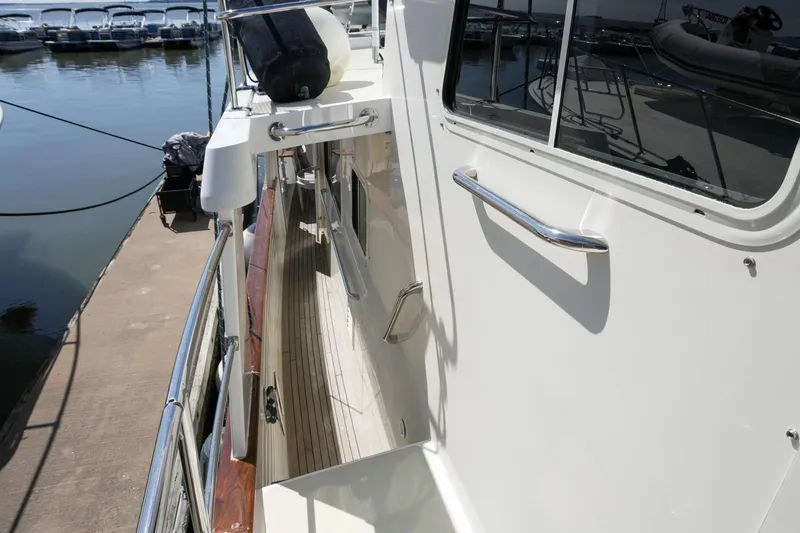

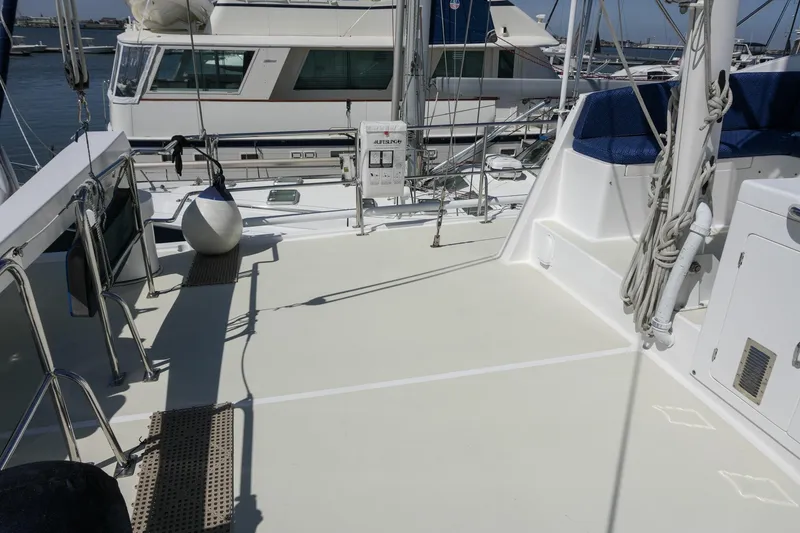

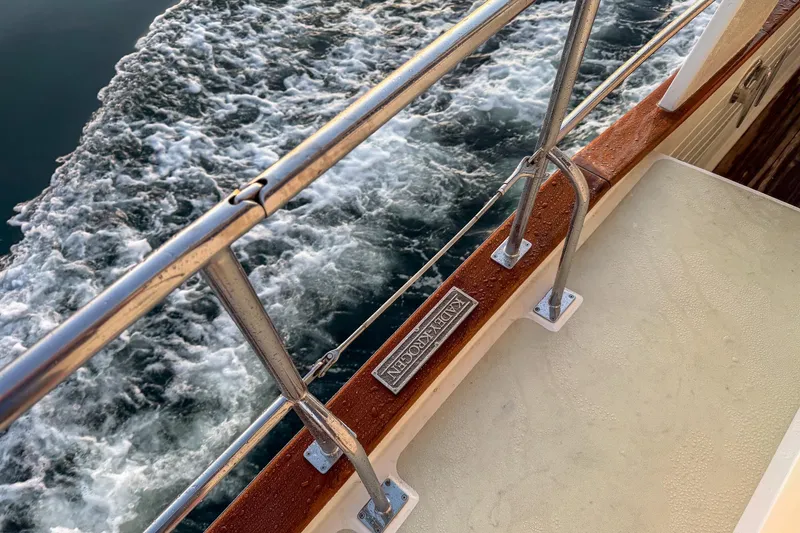

Teak aft and side decks. Boat and fore decks have GripTex® non-skid finish. Bulwark has molded plank lines with gel coat finish.

Polyurethane formulate marine sealants used at hull-to-deck, boat deck joints and exterior fittings.

Marine-grade plywood bulkheads with molded fiberglass hat section stringers.

Teak veneer walls and cabinetry with satin varnish.

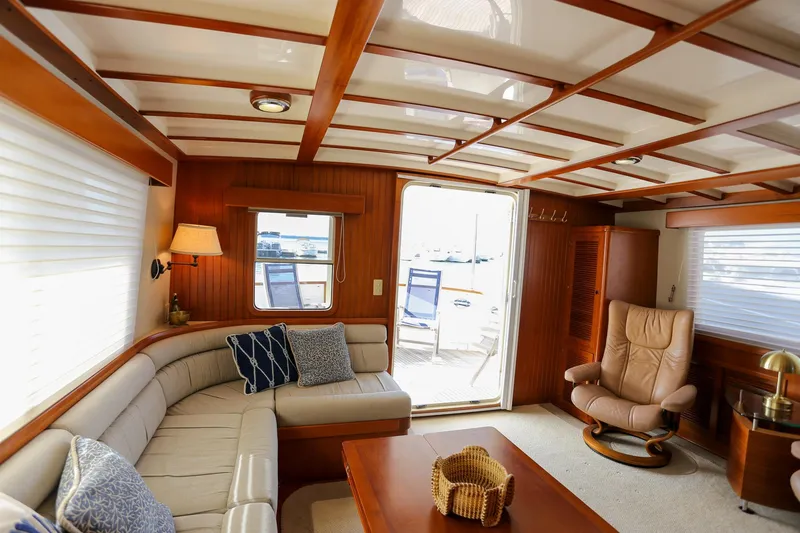

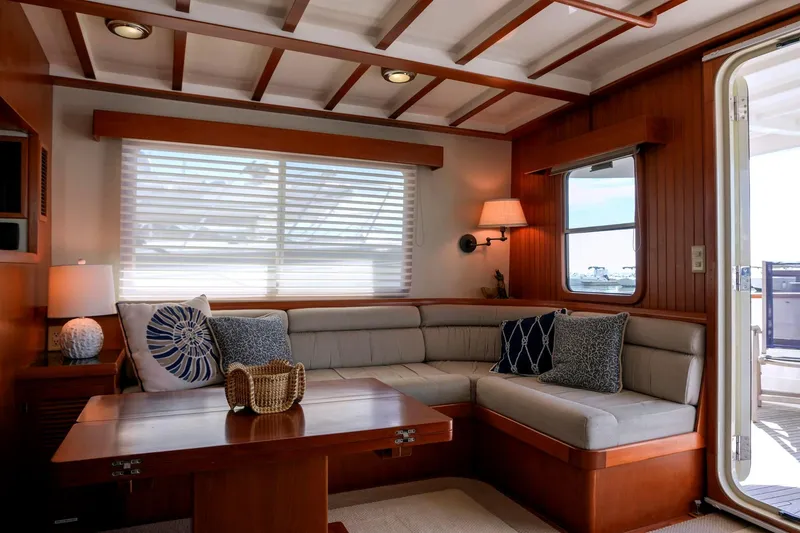

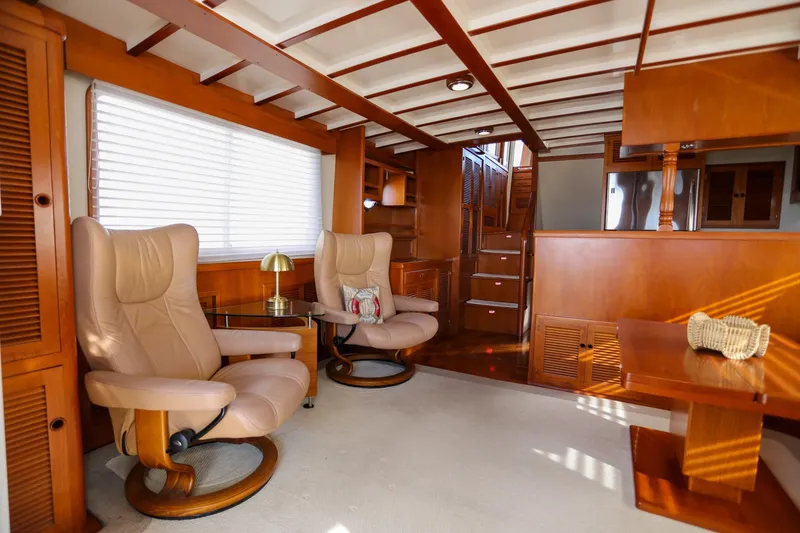

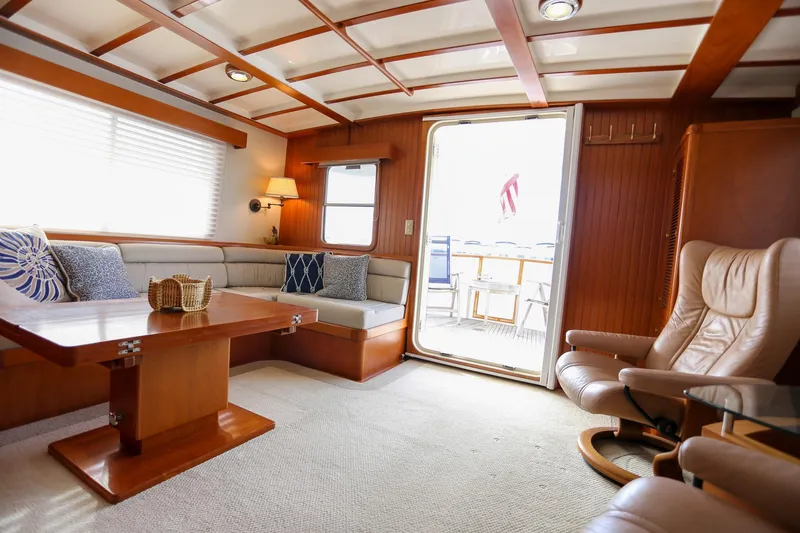

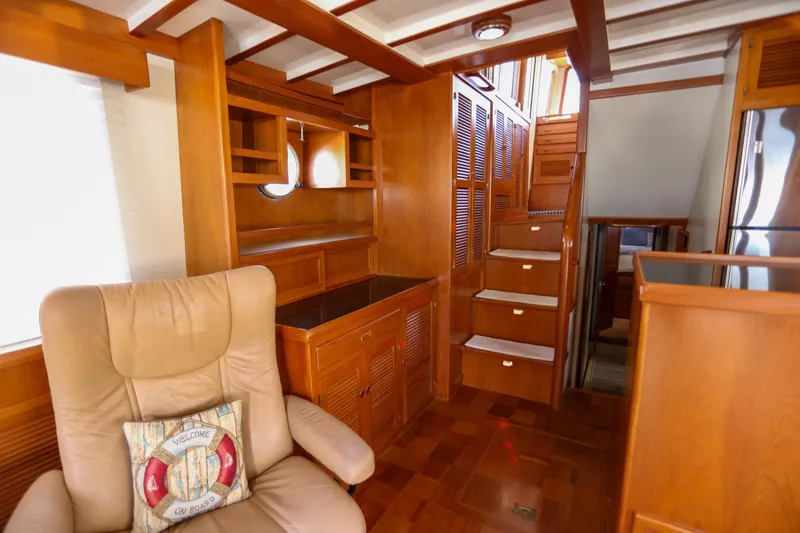

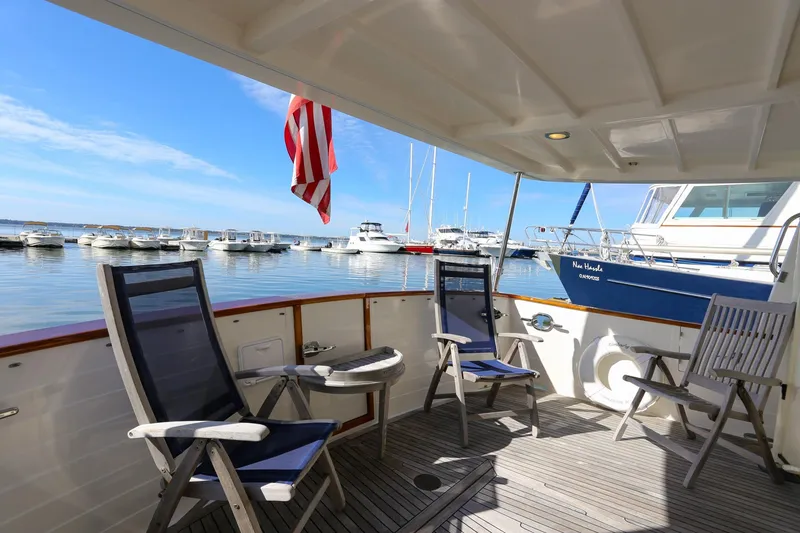

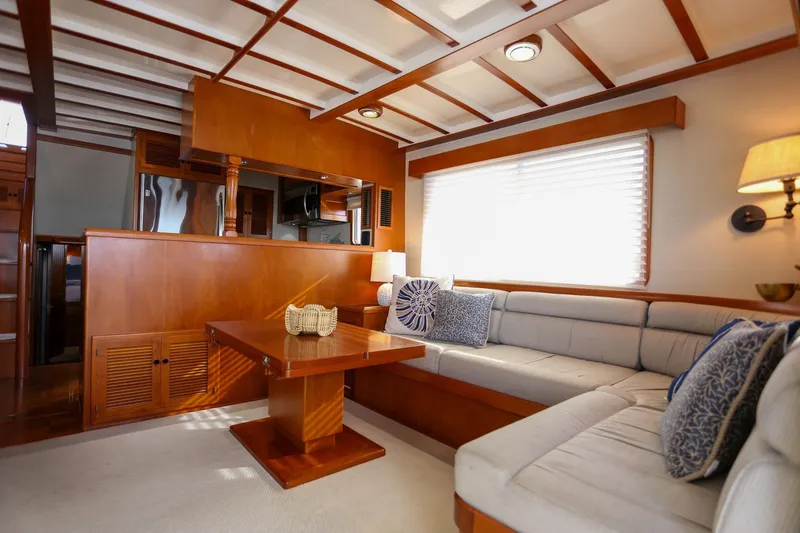

Bright, open, and inviting, the saloon aboard KIMBERLY ANN welcomes you from the fully covered aft deck through double aluminum weather-tight doors. Designed for comfort and enjoyment, the space combines timeless yacht styling with a warm, airy atmosphere.

A free-standing teak hi/low table provides a versatile setting for dining or entertaining, while two Ekornes Stressless chairs offer an ideal place to relax. Natural ventilation flows through three sliding screened windows, complemented by a Phantom retractable screen at the aft cockpit doors.

Custom-fitted carpet adds comfort underfoot and can be removed to reveal the rich teak flooring that runs throughout the interior.

As the final 48' model built with the traditional molded headliner and teak accents, KIMBERLY ANN reflects the classic craftsmanship and interior character expected of a proper yacht.

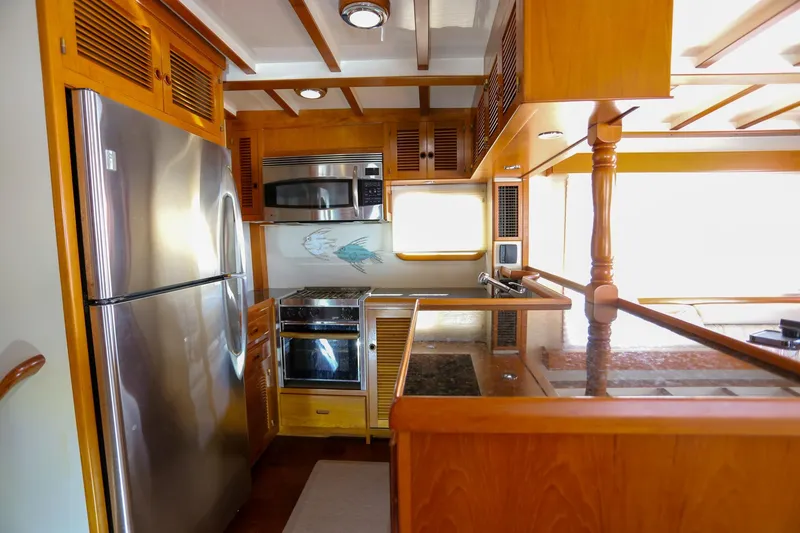

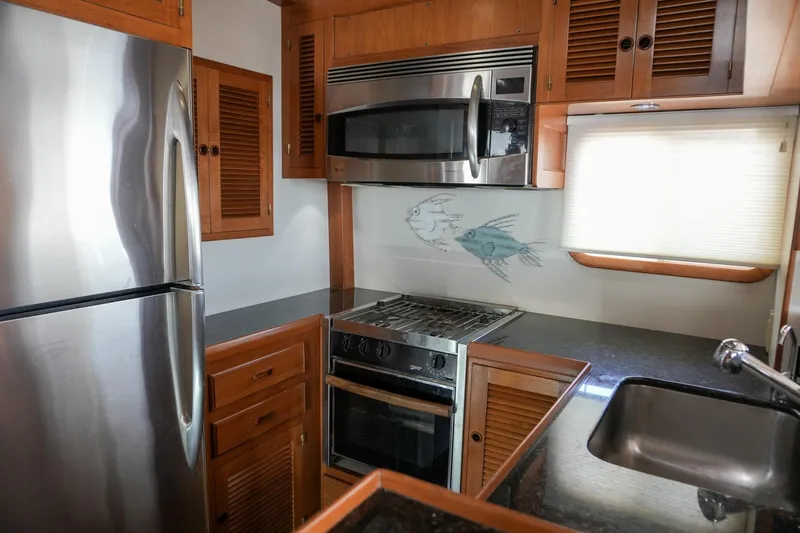

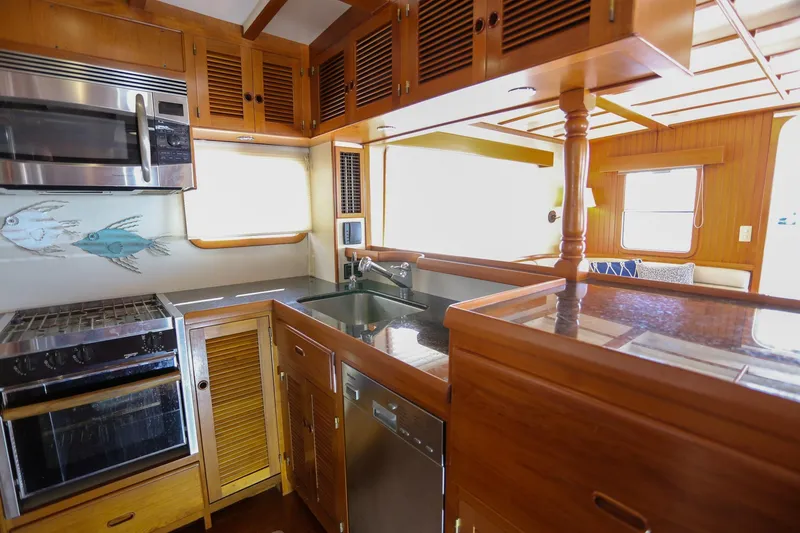

The U-shaped Galley is just forward of the Saloon on the Starboard side.  It is equipped with stainless-steel appliances and the granite countertops provide plenty of room for meal preparation.  Ventilation is provided through a sliding window with screen.  Opposite the galley is a teak bookcase/bar with matching granite countertop, a 12" round opening port light with screen.

Galley Appliances:

• GE 16 cu.ft Stainless Steel refrigerator/freezer
• GE microwave/convection oven vented to outside
• Force 10 three burner propane range with sea rails
• Miele dishwasher
• Raritan ice maker
• Seagull water filtration at the icemaker and galley sink

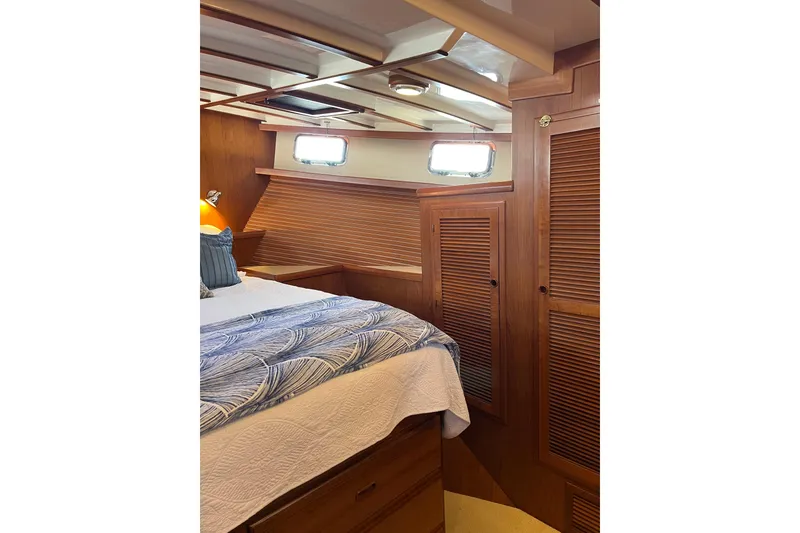

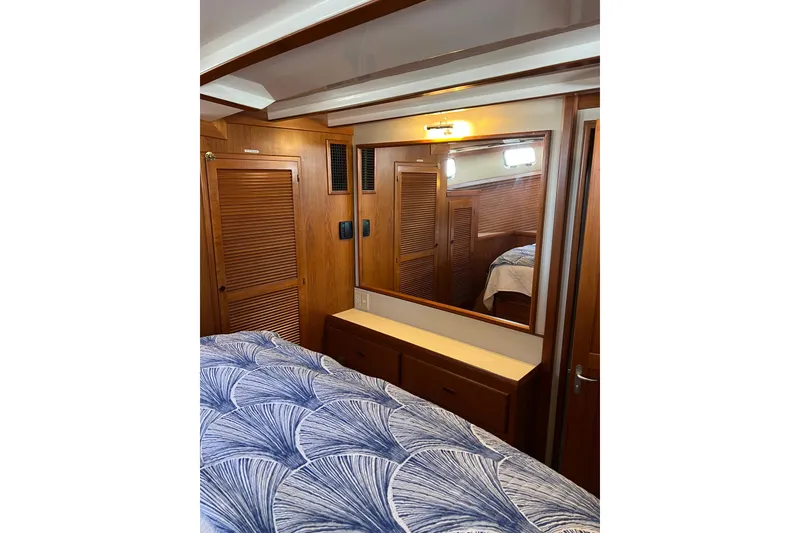

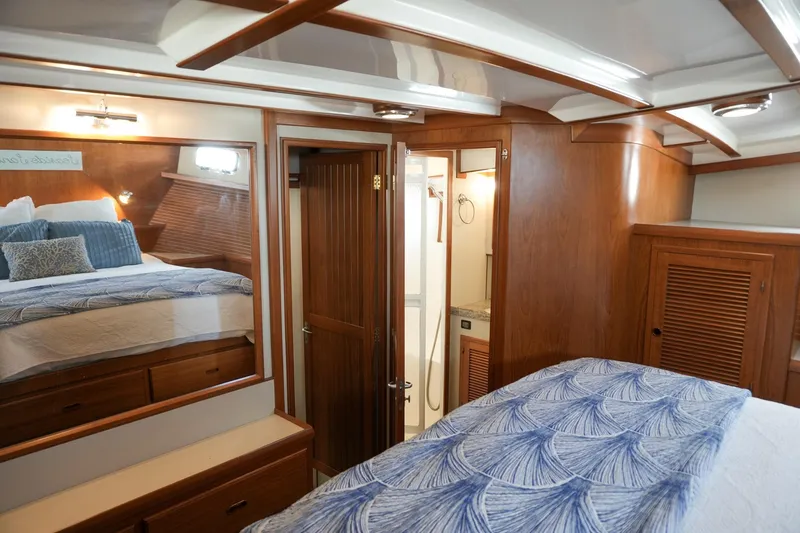

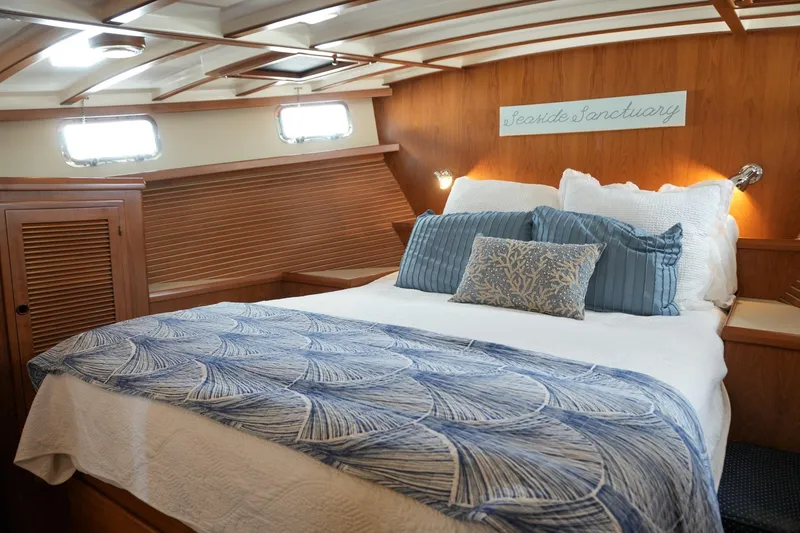

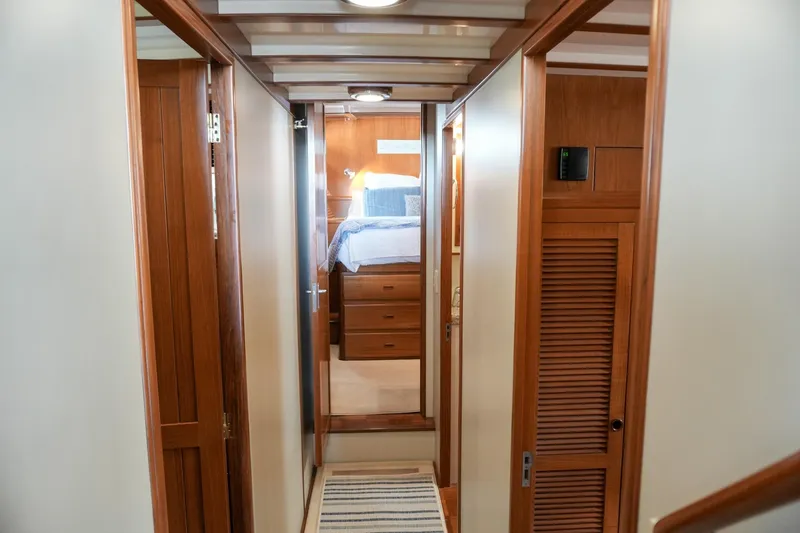

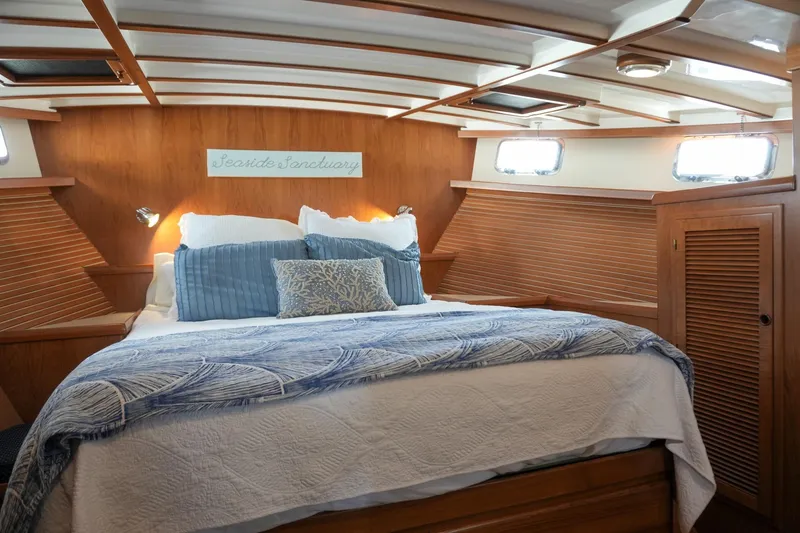

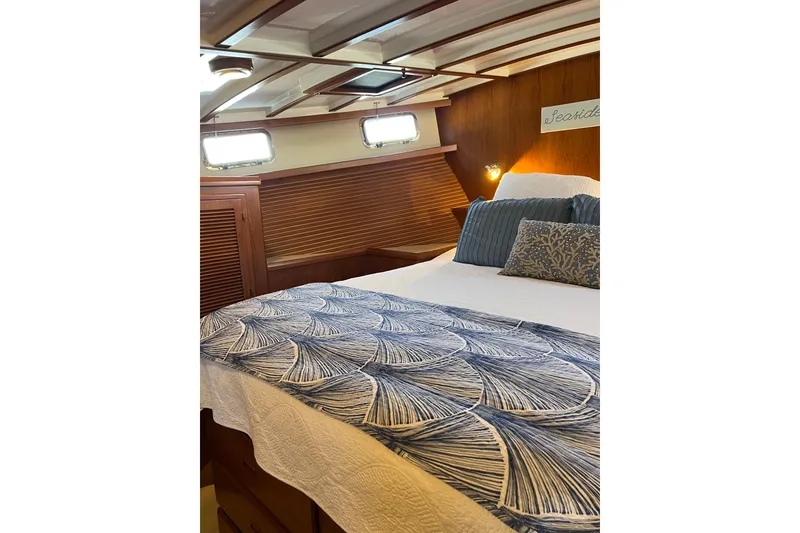

The master stateroom features a queen-sized island berth with abundant storage below,  three hanging lockers and plenty of drawer space.  There is great head room.  Four opening port lights with screens and two large opening overhead hatches provide light and natural ventilation. The absence of spray rails and chines forward insure tranquil nights at anchor.

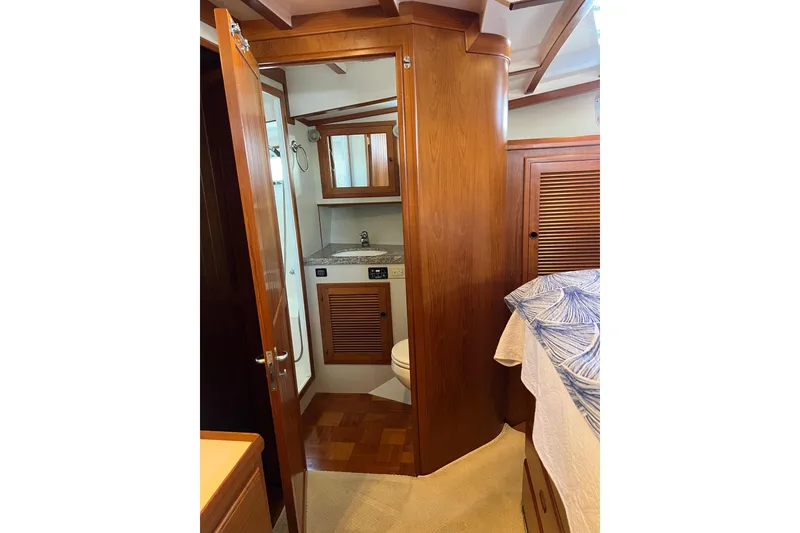

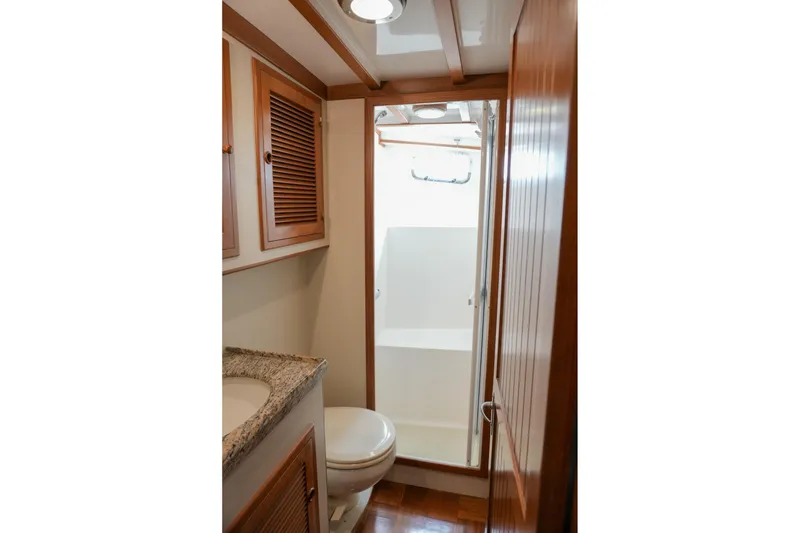

The en-suite head features a separate stall shower, Sealand VacuFlush fresh water head, vanity with a granite counter top, and two opening port lights with screens.

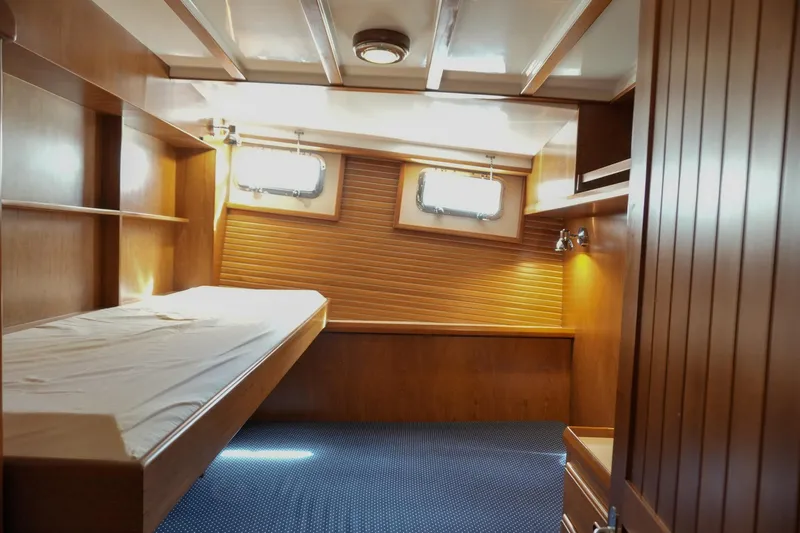

The Starboard guest stateroom (or 2nd cabin) has a full-sized fore and aft fixed berth, a fold down Pullman berth, a fold down desk. There is a chest of drawers, under berth storage, overhead book shelf, and a hanging locker.  Ventilation is provided via two opening port lights with screens.

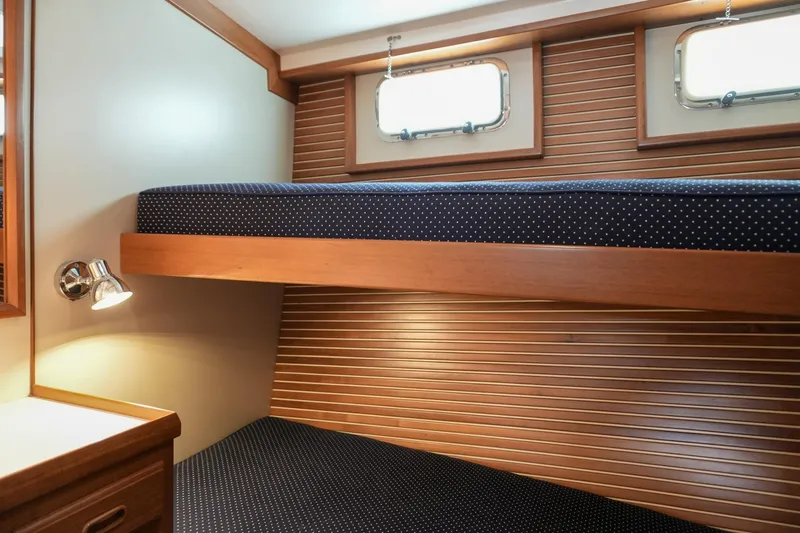

Being a 3-cabin model, KIMBERLY ANN provides a Port guest stateroom (or 3rd cabin) dedicated to overnight guests. There are comfortable upper and lower berths, drawer storage, hanging locker, and 2 opening ports.

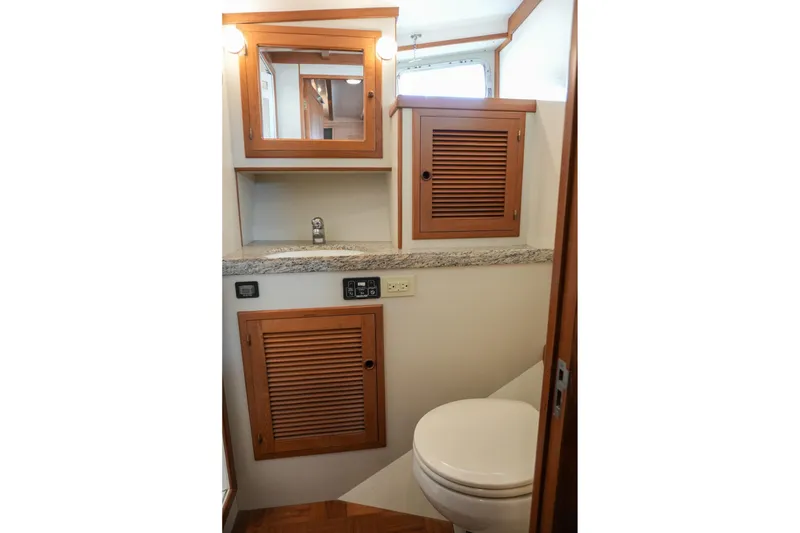

The guest head is to starboard and includes a separate stall shower, Sealand VacuFlush fresh water head, vanity with granite counter top, and an opening port light with screen.

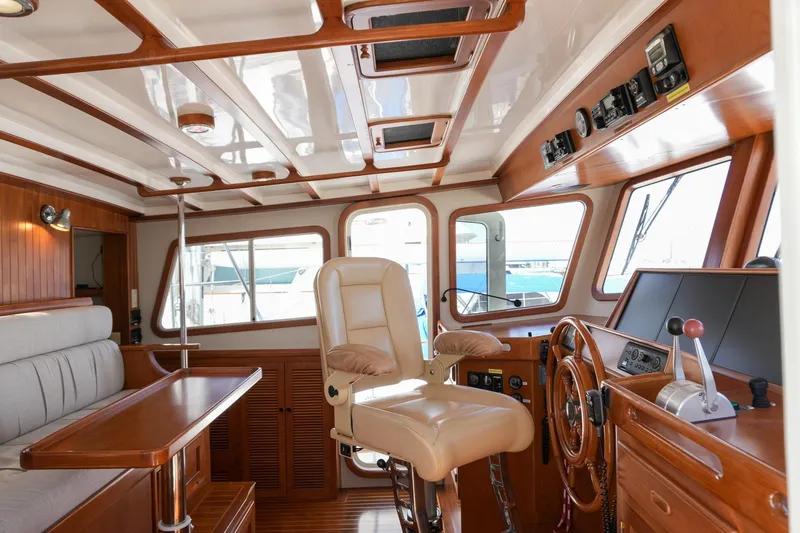

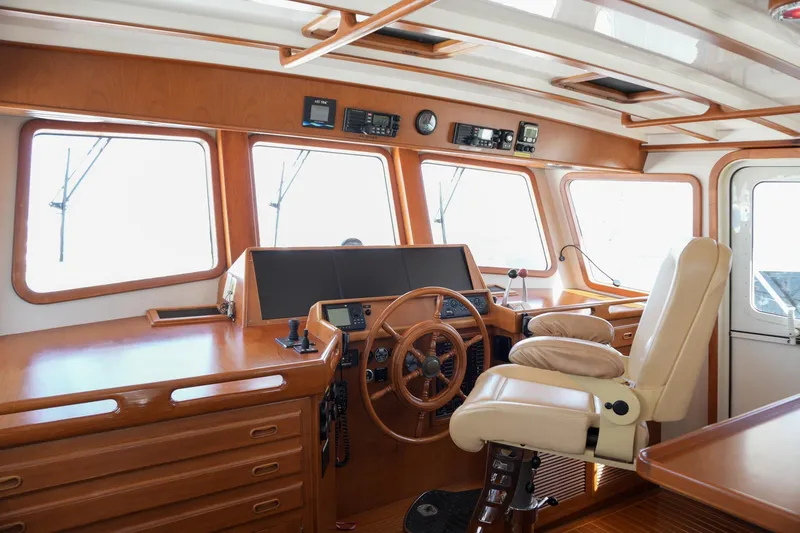

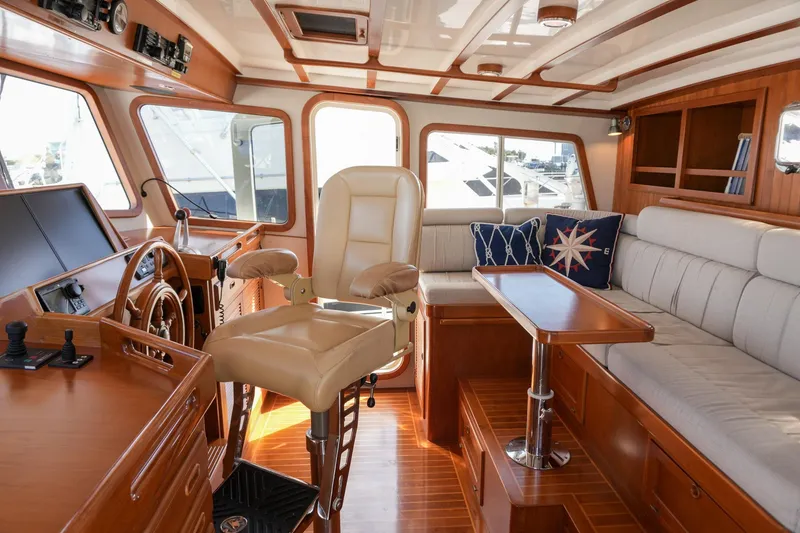

The raised pilothouse aboard KIMBERLY ANN delivers the elevated perspective and unmistakable, authoritative pilothouse presence that make this style of trawler so desirable. Designed for far more than navigation underway, it is equally suited as an inviting gathering space for morning coffee, casual meals, or relaxed conversation while enjoying the view.

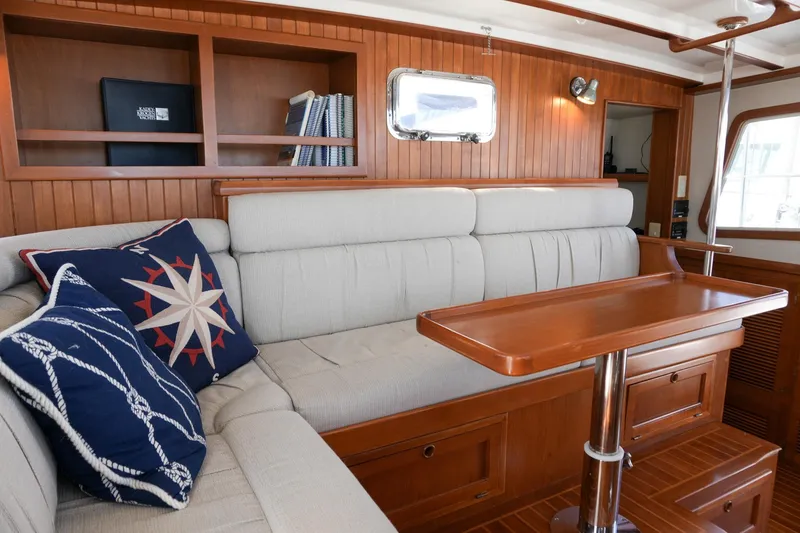

An L-shaped settee provides an excellent vantage point and a comfortable place to dine while cruising. It also converts to a double berth for guests or a generous single watch berth during extended passages.

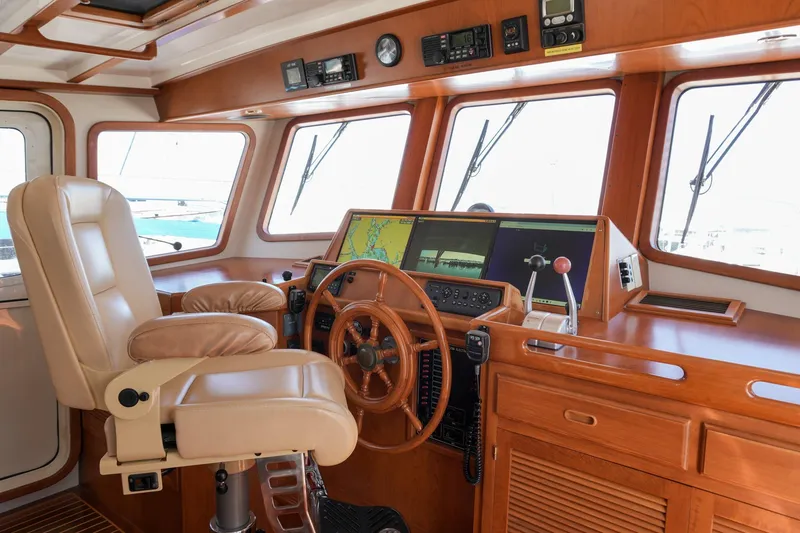

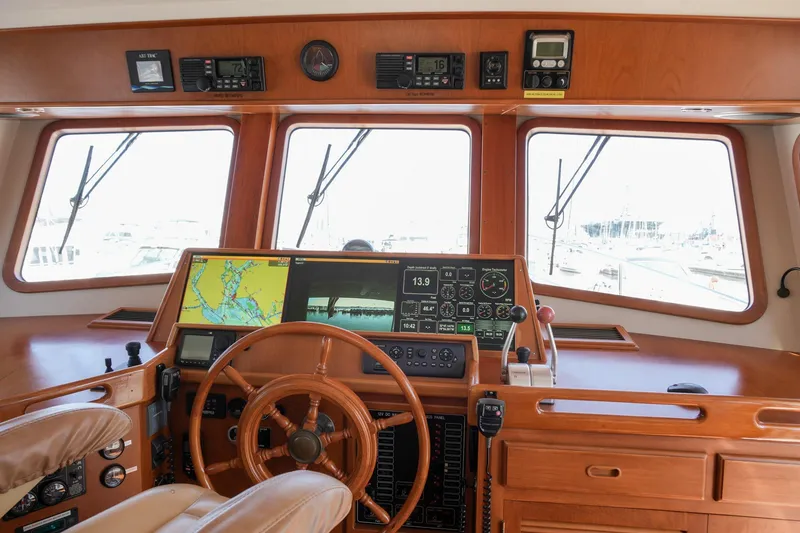

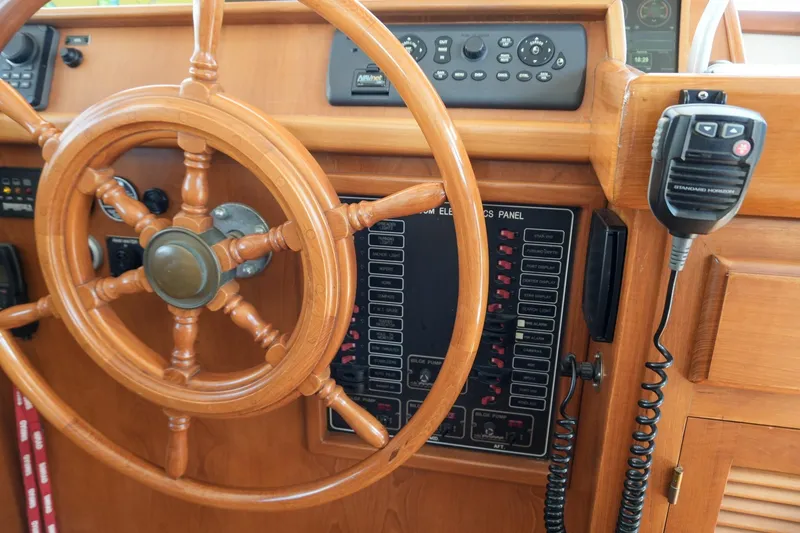

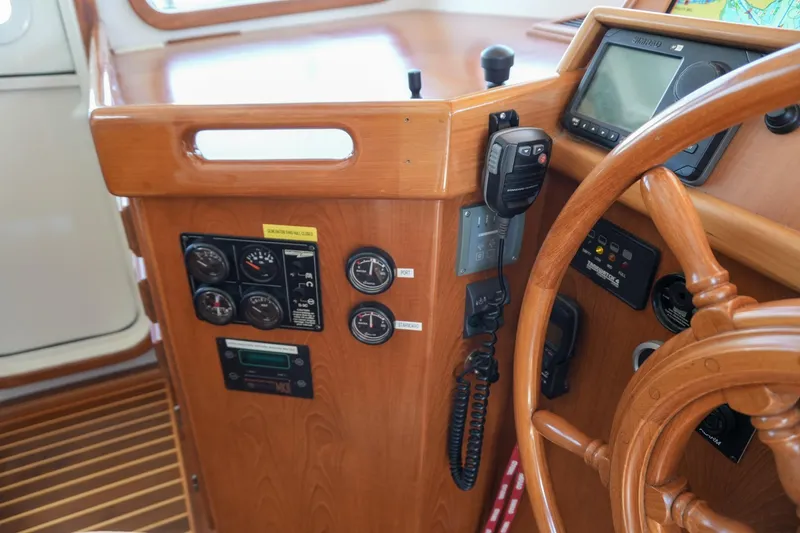

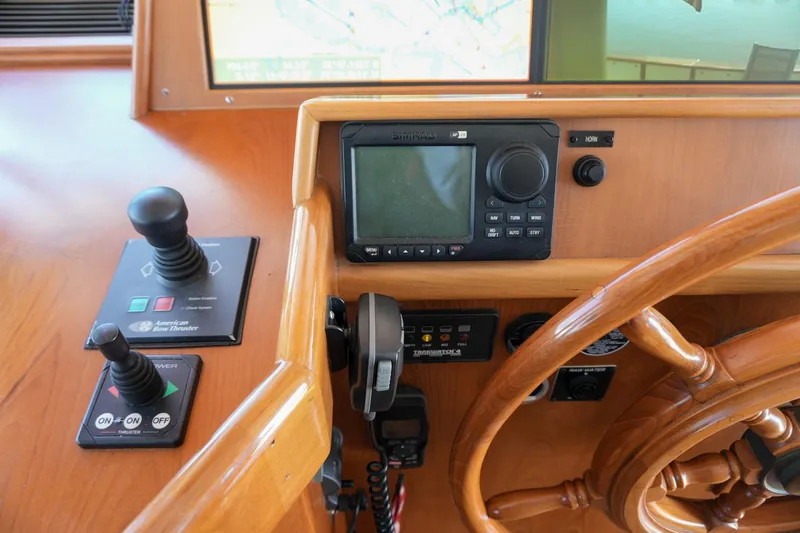

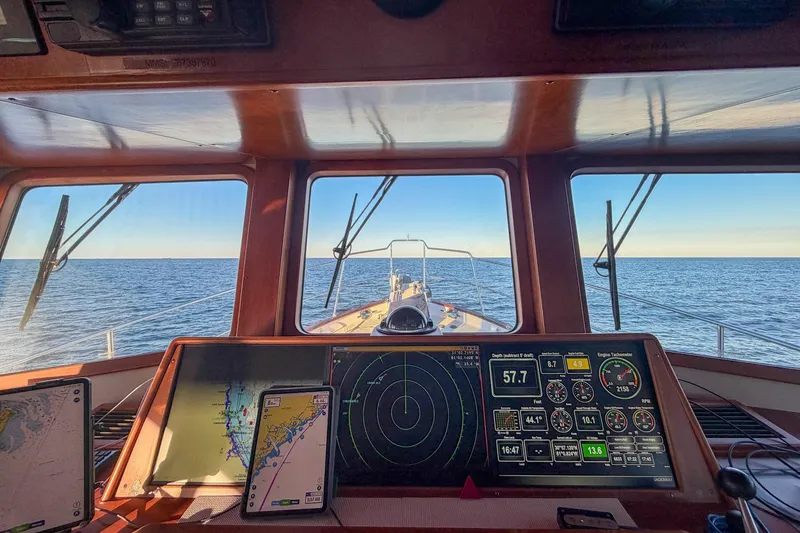

At the helm, a Pompanette Platinum Series leather captain’s chair, dedicated electronics area, expansive North Sea angled windows, and outstanding sightlines create a comfortable and highly functional command station for both captain and crew.

Natural airflow is abundant through Dutch aluminum weather-tight doors to port and starboard, overhead screened hatches, opening side windows with screens, and two screened portlights.

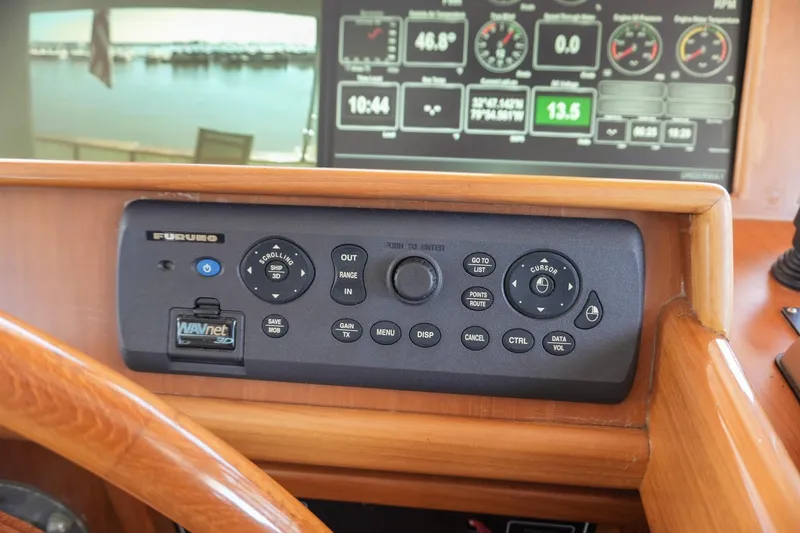

The electronics package installed on the KIMBERLY ANN is a fully integrated NEMA 2000 system using Furuno Navnet 3D and Maretron software:

• Simrad Autopilot AP28 (with remote control for use on the bow)
• 3 Custom 19" rimless “Glass Bridge” display screens
• Integrated Pilothouse Furuno Navigation System
  • Furuno NavNet 3D black box
  • Furuno HUB-101
  • NEMA 2000 integrated
  • Furuno Depth Sounder -DFF1
  • Furuno FA-50 Two Way AIS
  • GPS Receiver GP-320B
  • Furuno Navnet 3D Ultra High Def. 6Kw, 4' Open Array Radar
  • Two engine room and one aft deck day/night cameras
  • Dual heading sensors: Furuno PG-700 & Simrad RC-42
• Communications System

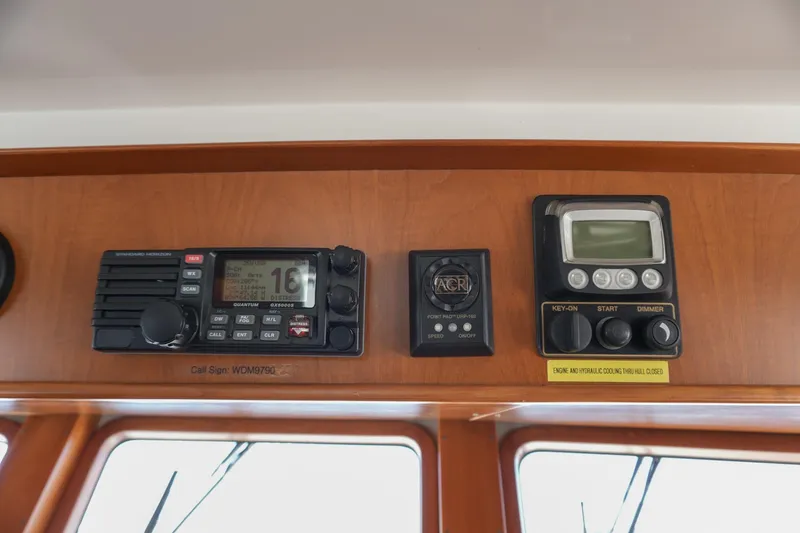

  • Two Standard Horizon GX5000S VHF Radios
  • Standard Horizon VLH-3000 hailer/horn
• Integrated Maretron NMEA 2000 Monitoring and Display System
  • Windows PC (1) for Maretron system (new 2025) with back-up battery pack
  • Maretron N2K Server and Client Software  on above PC
  • Maretron IPG100 HUB
  • Airmar WS-220WX weather station
  • Maretron J2K100 (John Deere main engine monitor)
  • Airmar DST200 NMEA 2000 depth/speed/temp sensor
  • Maretron rudder angle monitor
• ACR RCL100D Spotlight and control
• Furuno DRS4W wireless radar dome
• SONOS 250watt amp with pilothouse speakers
• Wi-Fi system with router

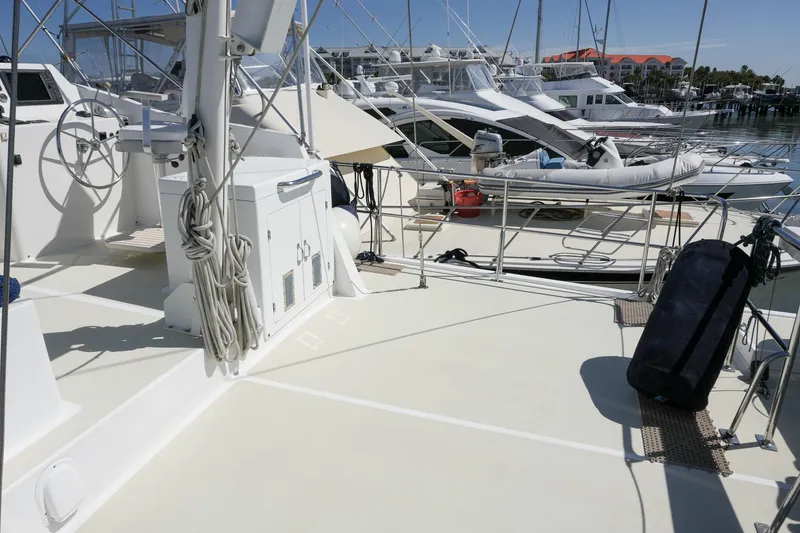

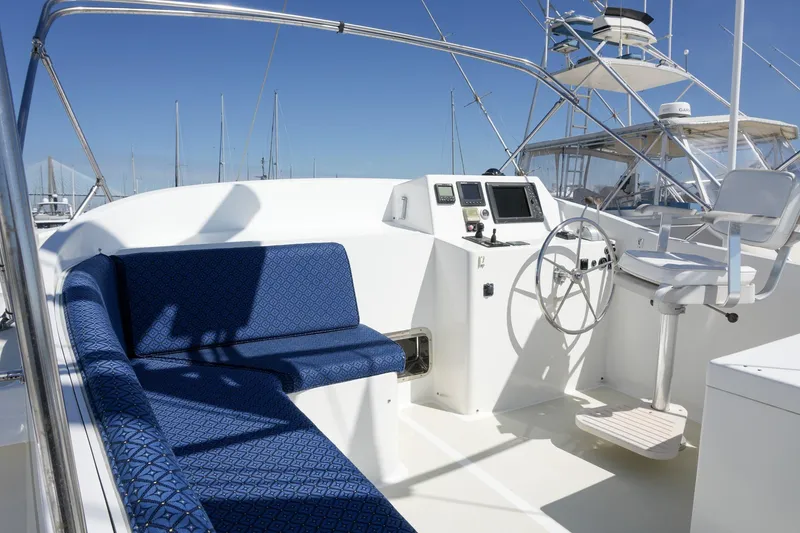

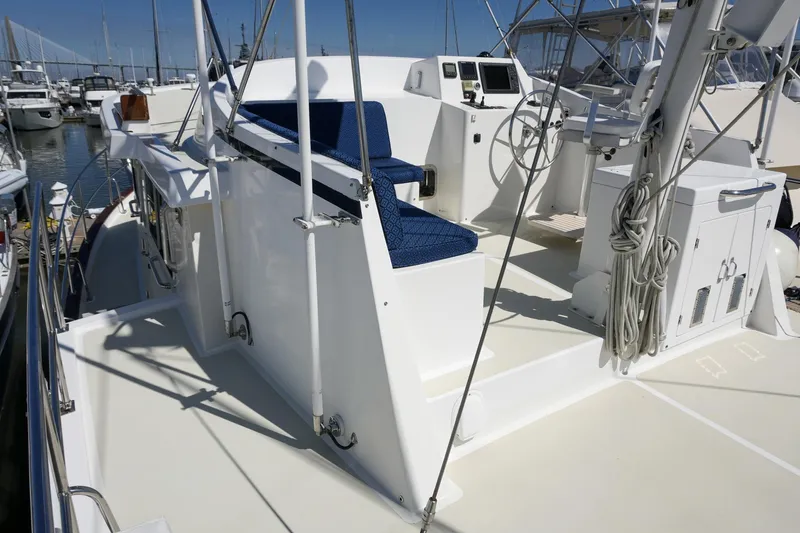

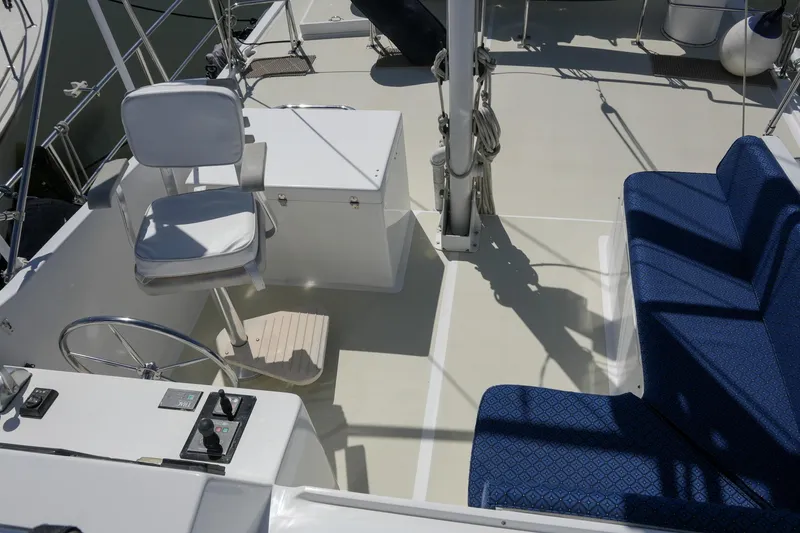

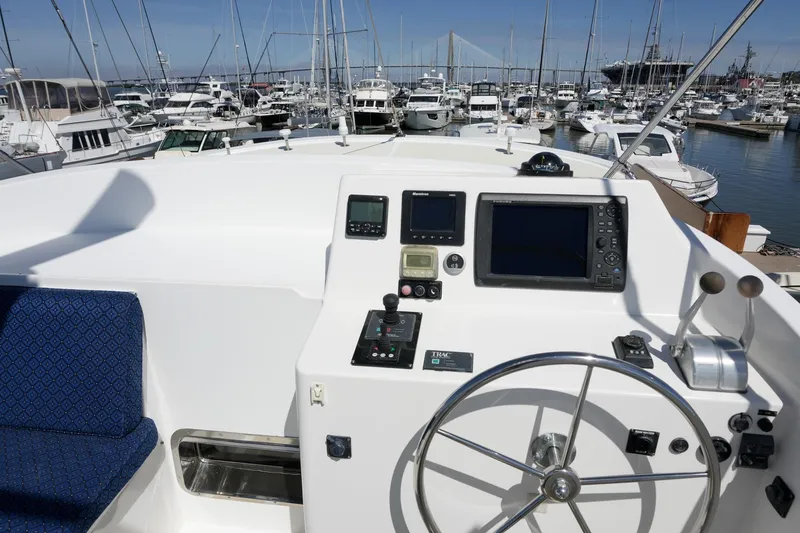

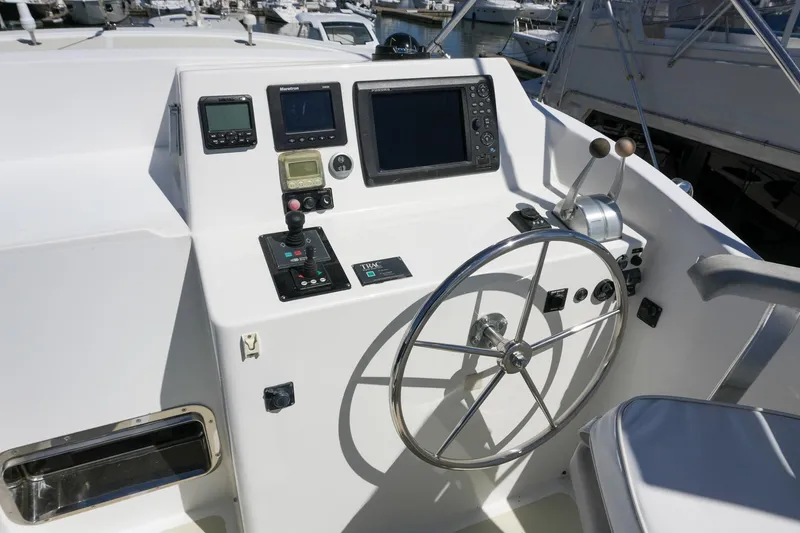

FLYBRIDGE

• Navnet MFD 12 chart plotter displays all Furuno system
  • Backup GPS GP-320B receiver
  • Networked to Furuno hub and NMEA 2000 to allow all radar, engine and depth data to be displayed
• Remote Mics for both VHF radios
• Simrad AP24 autopilot
• ACR Spotlight Control
• ACR EPIRB RLB-36 Cat 1

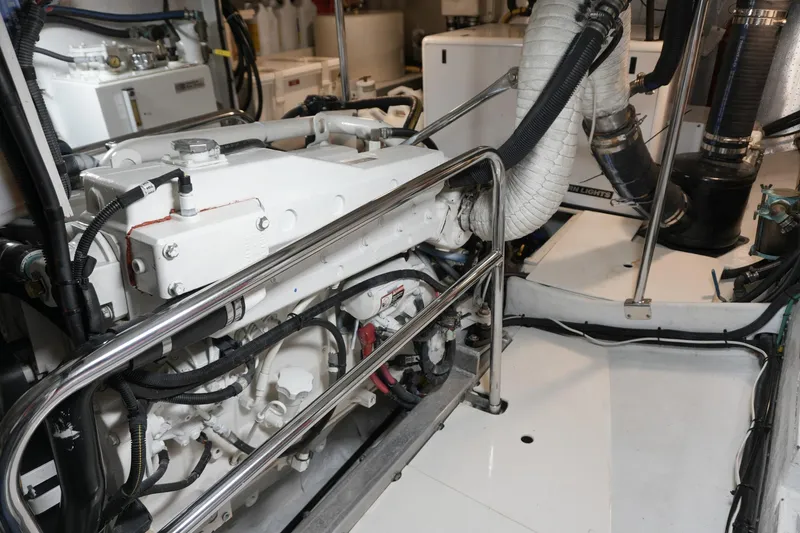

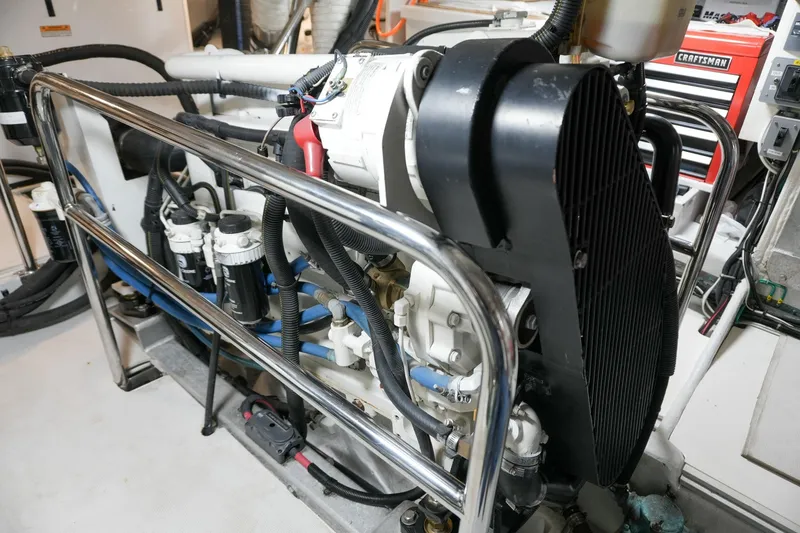

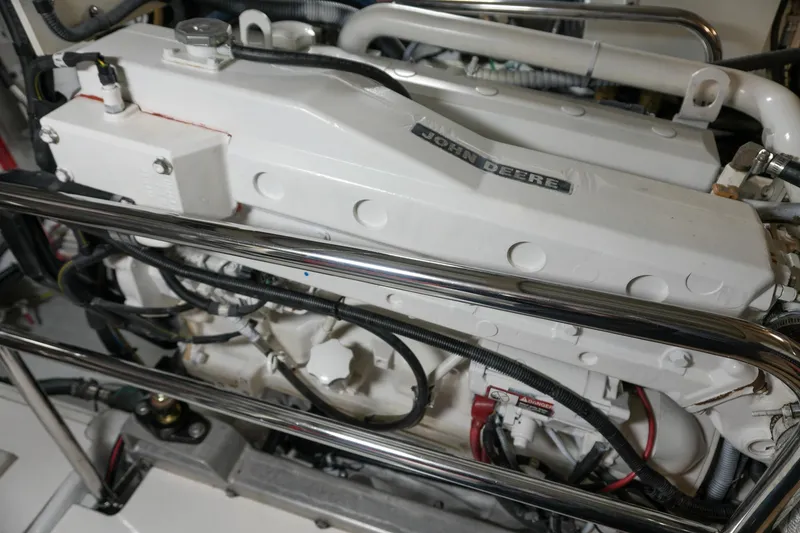

• Engine : Tier II John Deere® #6068 TFM, 201 hp @ 2600 rpm with Twin Disc® 3.0:1 ratio gear - 6550 hours.
• Key Power hydraulic get home drive (manual operation from engine room)

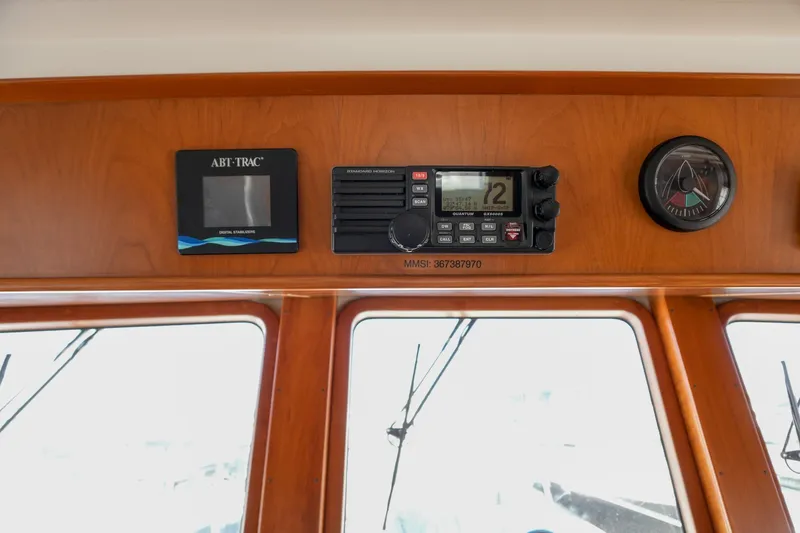

• ABT TRAC digital hydraulic stabilizers

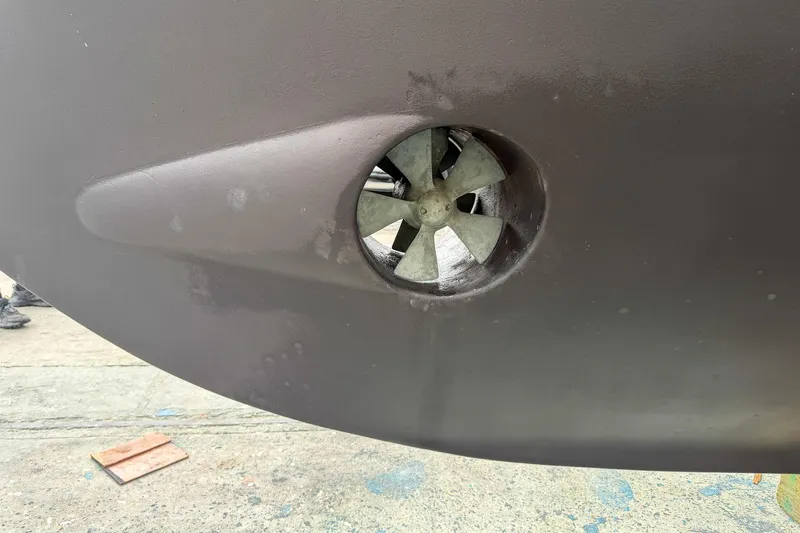

• ABT Hydraulic bow thruster with pilothouse and flybridge controls

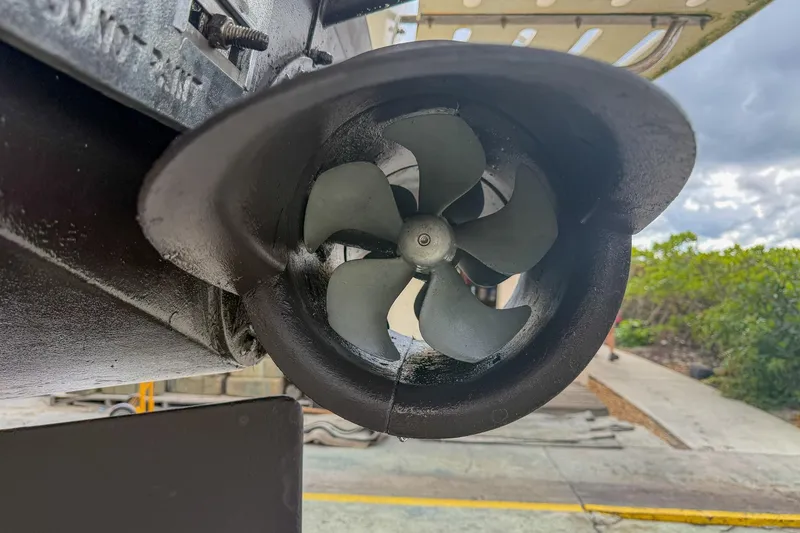

• Side-Power electric stern thruster with pilothouse and flybridge controls
• Fuel Filters: Dual Racor® w/ vacuum gauge
• Shaft: Aquamet®, 2" diameter
• Shaft Seal: Tides® dripless (new 2025) with two (2) spares in shaft carrier

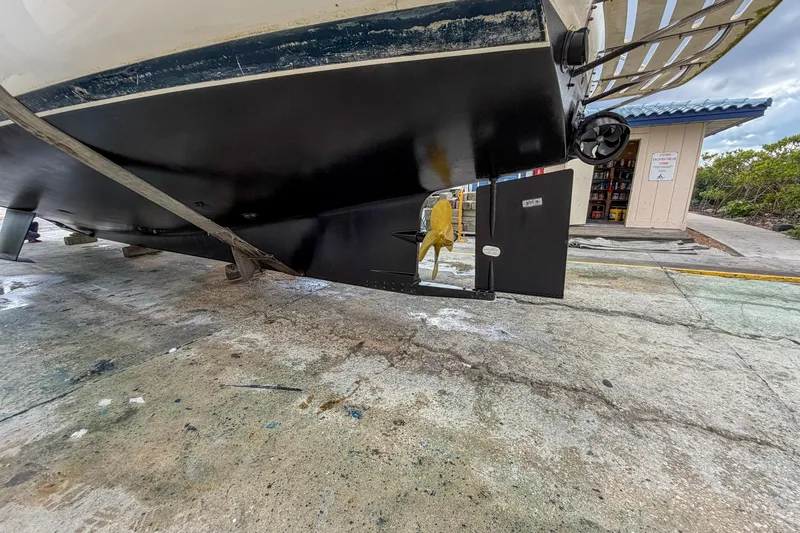

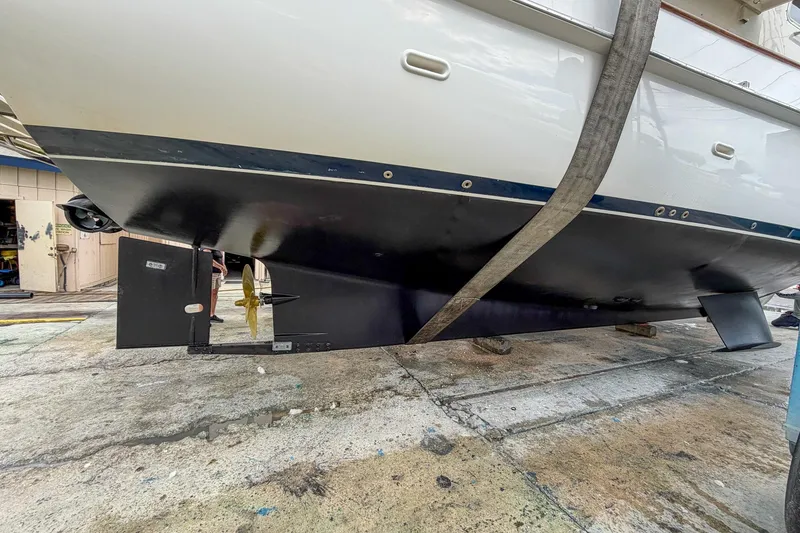

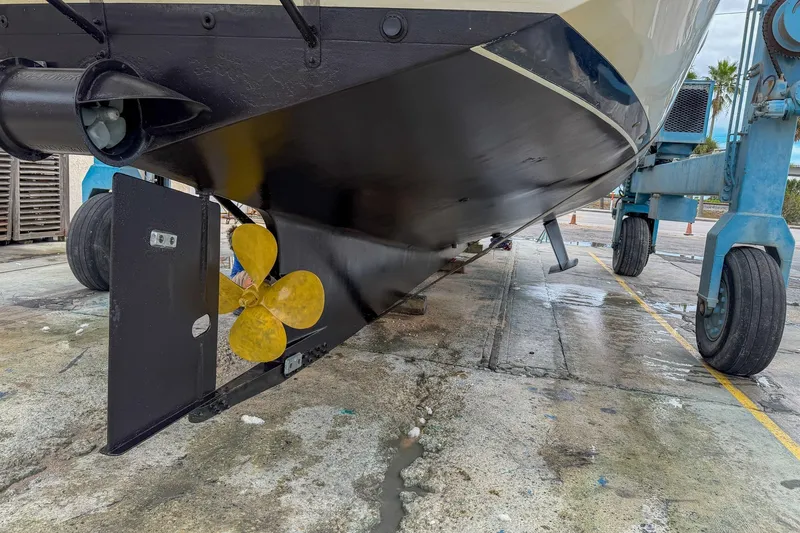

• Propeller: bronze, 4-bladed, 32" diameter, 21" pitch
• Spurs Line Cutter
• Stainless steel rudder with protective shoe
• Bilge Pumps: (4) @ 2,000 gallons-per-hour
• High water bilge alarm with exterior sounder
• Hynautic® hydraulic steering (2-station)

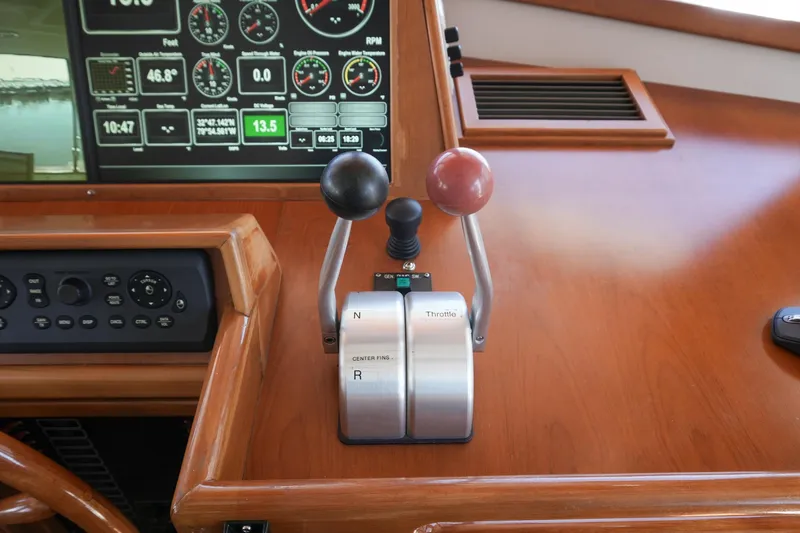

• Hynautic® hydraulic engine controls (2-station)

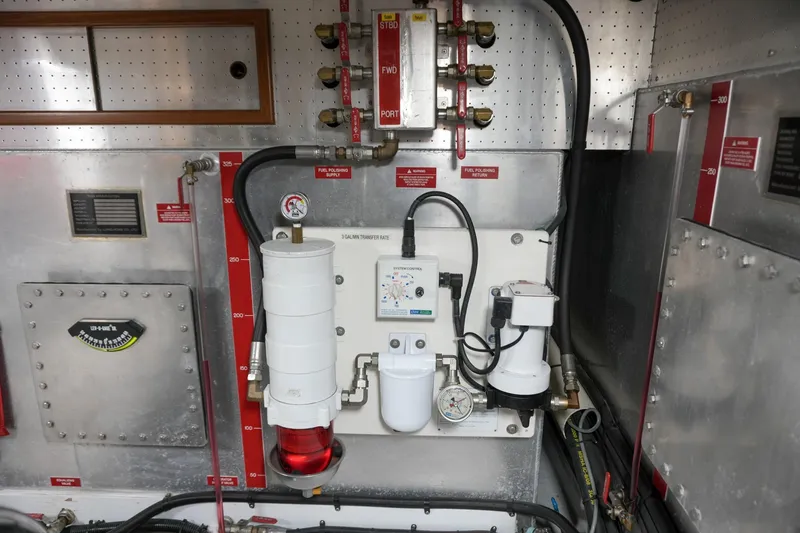

• ESI fuel polishing system
• Reverso oil change system
• Automatic fire suppression system
• Spectra "Newport" 1000 gpd watermaker *Watermaker currently pickled. Buyer may need new membrane.

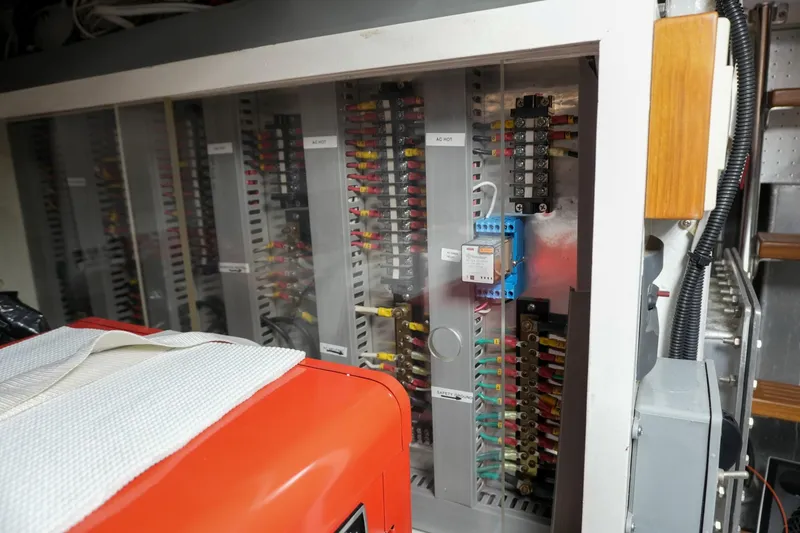

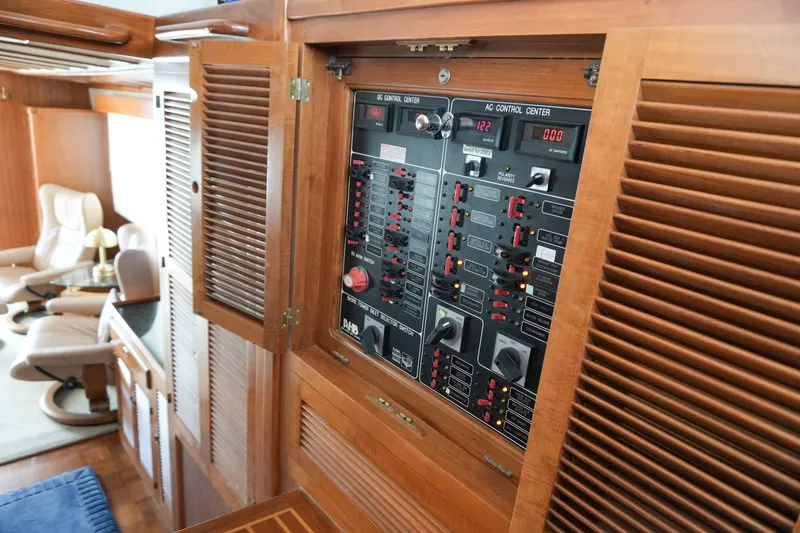

The upgraded electrical system on KIMBERLY ANN has been carefully selected to allow ease of charging and longer battery life.  The two inverters are used independently to invert, but can be combined for charging in half the time.  The amp hours on the house battery bank have been increased to 1200 amp hours.

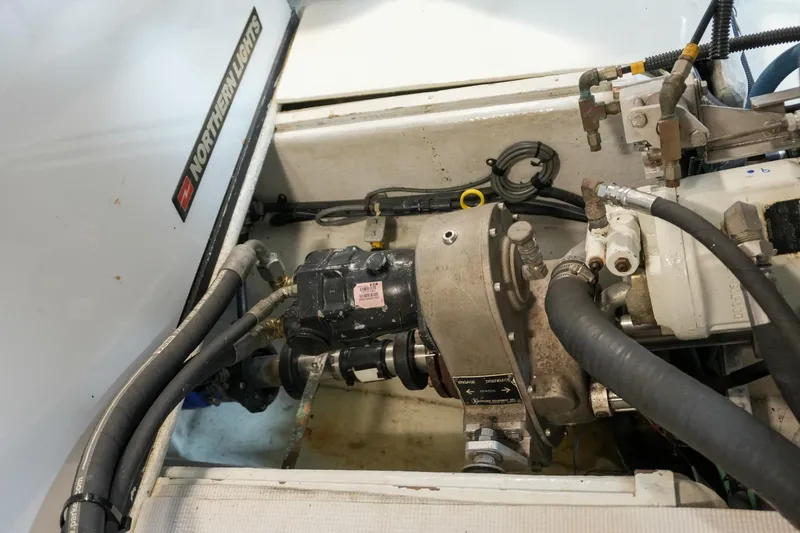

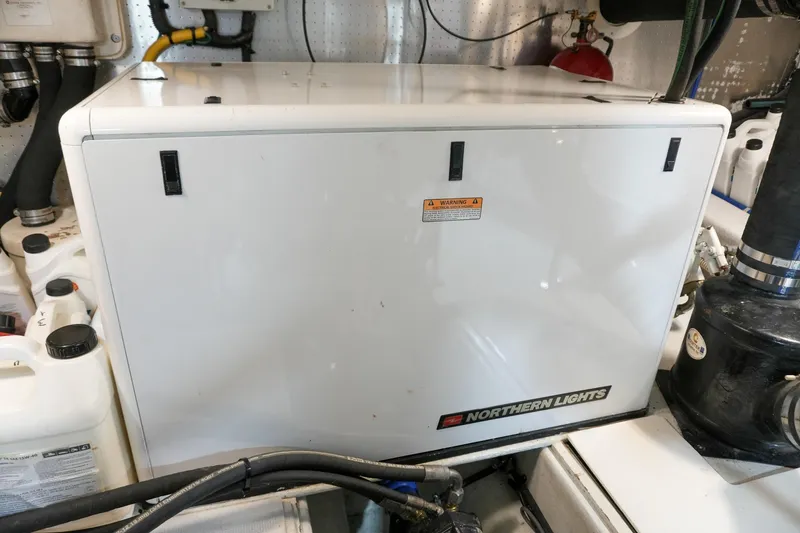

• Generator: Northern Lights, 12kW with PTO, sound shield, Racor filter  (3560 hours)
• Alternator: Balmar 270 amp
• House Batteries:  Lifeline GPL 16T, 1200 amp hours (new 2024)
• Engine start battery: GPL 8DL
• Generator start battery: GPL 4DL
• Maretron DCM100 battery monitor

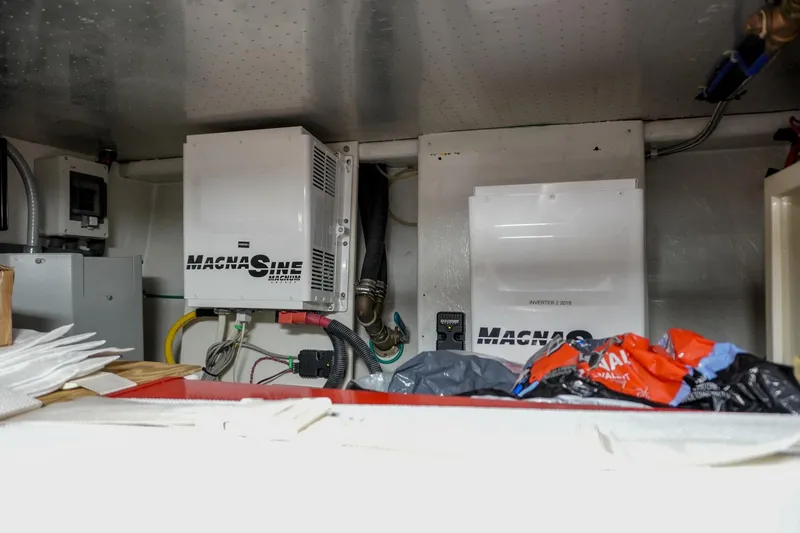

• 2 Magnum MS2812 inverter/chargers
• 2 Magnum ME-BMK batter monitors
• Magnum ME-AGS-N automatic generator start module
• Galvanic Isolator: Newmar GI50
• Acme Electric isolation transformer
• Glendinning Cablemaster

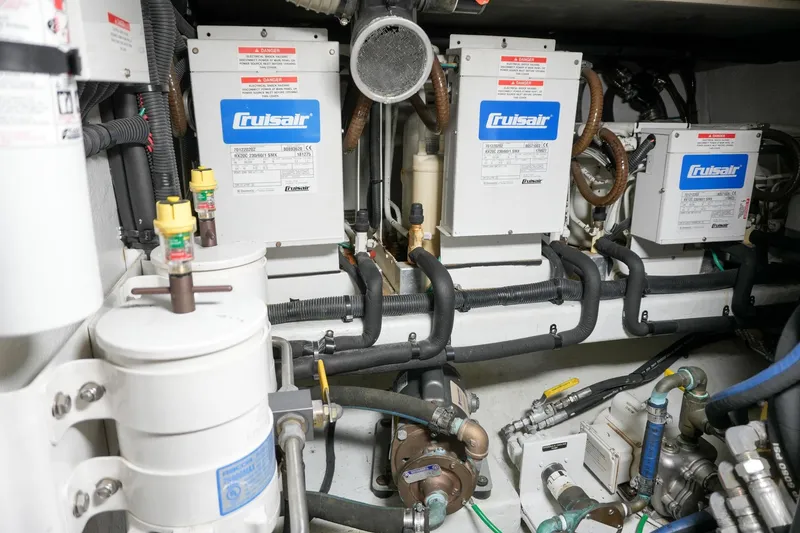

• 4-Zone CruiseAir® DX reverse cycle air conditioning

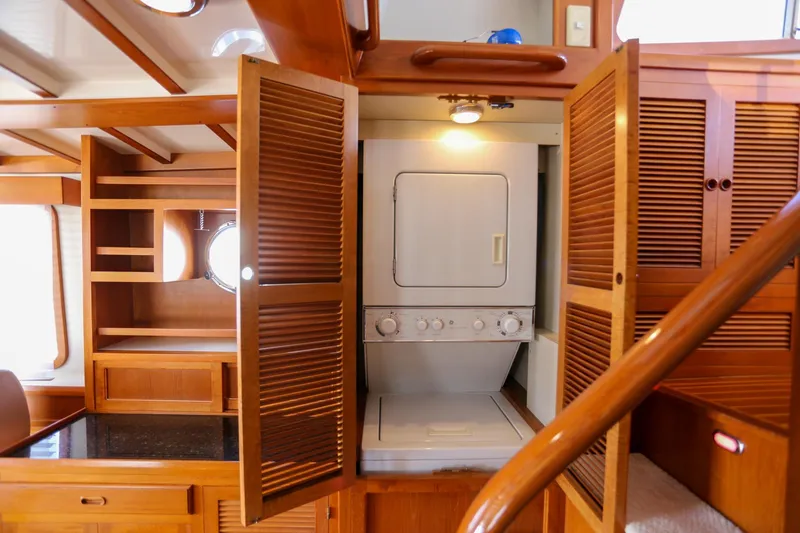

• GE Spacemaker Washer/Dryer

• Dockside water pressure regulator

• 2 Headhunter Mach 5 120v fresh water pumps

• Raritan 20-gallon water heater

• Transom hot/cold fresh water shower

• MarQuipt Tenderlift Classic 1000 hydraulic power rotating davit

• Rocna 88lb anchor

• Delta Fast Set 88lb anchor

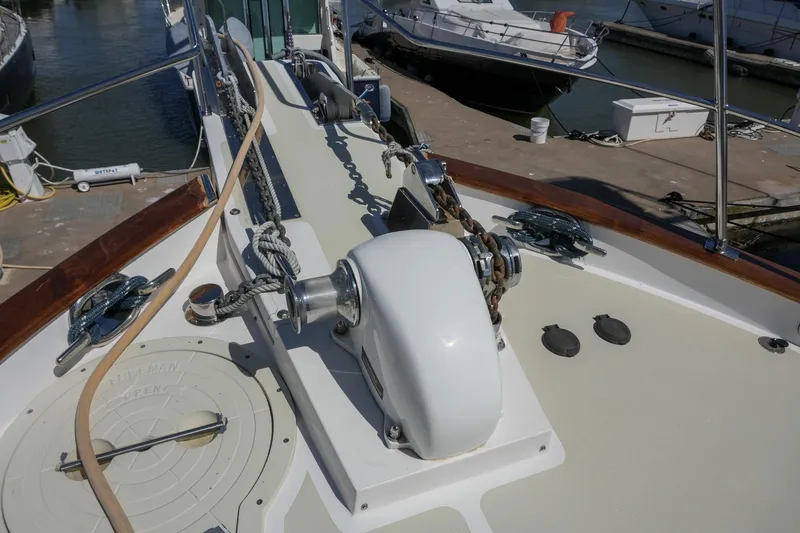

• Maxwell 2200 anchor windlass with wildcat and gypsy

• Freeman fore deck chain locker hatch

• Raw water anchor washdown

• Flopper Stopper
• Locking lazarette with custom storage shelves and fishing rod holders

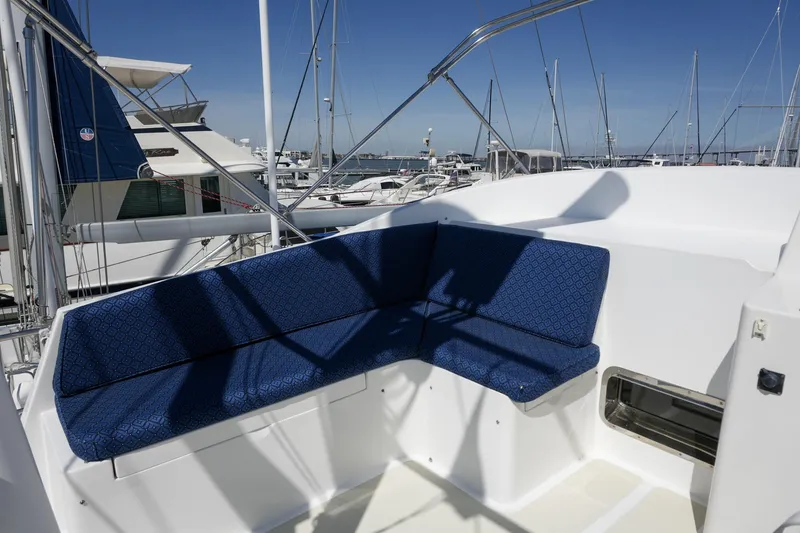

• Canvas for Bow seating and Flybridge
• Safe
• Coast Guard Safety Equipment
• Back up cooling pump for the hydraulic system, electric for redundancy
• Cutlass bearing serviced and replaced on main shaft (12/2025)

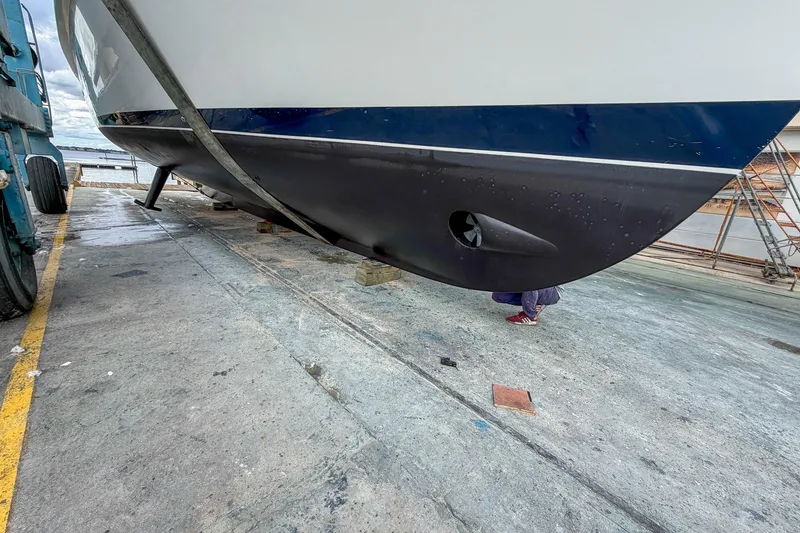

• Bottom paint (12/2025)
• Prop speed on running gear (12/2025)
• Ceramic coated exterior and detail (12/2025)
• Stabilizer seal service (12/2025)
• Fire suppression systems, including for main engine and handhelds hold current certification (11/2025)

Owner's personal belongings, artwork, personal tools and tender do not convey with sale of boat.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
